EN10088-1 X12CrMnNiN17-7-5 stainless steel

Grade: EN10088-1 X12CrMnNiN17-7-5 stainless steel
Brand: BEBON
Type of steel: Stainless
specification:
stock: 1000Ton

EN10088-1 X12CrMnNiN17-7-5 stainless steel

EN10088-1 X12CrMnNiN17-7-5 steel is an austenitic chromium nickel stainless steel that was developed originally to conserve nickel.X12CrMnNiN17-7-5stainless steel chemical elements are mainly combines C Si Mn P S Ni Cr N.

EN10088-1 X12CrMnNiN17-7-5 chemical composition (%)

C

Si

Mn

P

S

Ni

Cr

N

≤0.15

≤1.00

5.50-7.50

≤0.050

≤0.030

3.50-5.50

16.00-18.00

0.05-0.25

EN10088-1 X12CrMnNiN17-7-5 Mechanical Properties


Mechanical  Property

Hardness Value

Sample state

Rm
MPa

Rp0.2
MPa

A
%

Z
%

HBW

HRB

HV

solid solution

≥520

≥275

≥40

≥45

≤241

≤100

≤253

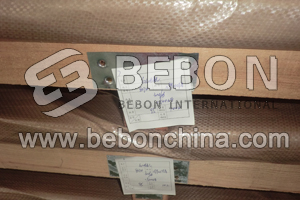

EN10088-1 X12CrMnNiN17-7-5 stainless steel Package
EN10088-1 X12CrMnNiN17-7-5 stainless steel Package

The equal material of X12CrMnNiN17-7-5 in different standard.

GB/T1220

ISO/TS15510

JIS G4403

EN 10088-1

12Cr17Mn6Ni5N

X12CrMnNiN
17-7-5

SUS201

X12CrMnNiN
17-7-5

EN10088-1 X12CrMnNiN17-7-5 Application: X12CrMnNiN17-7-5 steel can be used in the manufacture of railway vehicle, conveyor belt, bolt, nut and so on.
X12CrMnNiN17-7-5 Features:
*(Yield stress):350N/m㎡
*Tensile stress):700N/m㎡
*Strength of extension: σb (MPa):≥520
*offset yield strength :σ0.2 (MPa):≥275
*elongation δ5 (%):≥40
*Reduction of area ψ (%):≥45

The surface finish type of X12CrMnNiN17-7-5 we can supply are : 2B, NO.1/#1, 2D, NO.3, NO.4 .....

We also can do the further process on the surface of X12CrMnNiN17-7-5 stainless steel material, like: bright finish(6K, 8K), wiredrawing, sand blasting, dull polishing, coloring, embossing, etching, no fingerprint and so on.

EN10088-1 X12CrMnNiN17-7-5 stainless steel Machining
EN10088-1 X12CrMnNiN17-7-5 stainless steel Machining

X12CrMnNiN17-7-5 stainless steel material can produced into different product type, like : plate/sheet/coil/ weld and seamless pipe / flat bar / angle steel / solid round bar / square bar/ hexagonal bar / octagonal steel/ wire...

Bebon International as a professional X12CrMnNiN17-7-5 Stainless steel supplier will try our best to give our clients the best service, quality and price. If you have any inquiry about X12CrMnNiN17-7-5 stainless steel, please do not hesitate to contact our sales.
