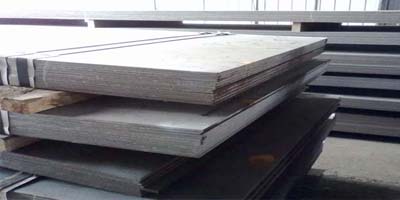

EN 10028-2 P355GH Pressure vessel steel plate Equivalent Material

P355GH Pressure vessel steel plate which according to standard EN 10028-2 are mainly specified in elevated temperature working surroundings and normally used to low strength welded boilers and pressure tanks&vessels. P355GH is a pressure vessel steel grade as specified under the Euro Norm standard which has superseded British Standard and DIN standard equivalents.

With the yiled strength at 355 Mpa, EN 10028-2 P355GH pressure vessel steel plate shall be done heat treatment under Normalised. For the additional technicals, SPWHT-Simulated Post Welded Heat treatment and Ultrasonic test, P355GH steel plate is normally adopted.

EN 10028-2 P355GH steel plate Mechanical properties
Yield strength Mpa:280-355
Tensile strength Mpa:470-650
Elongatiion(%):20

P355GH Pressure vessel steel plate Chemical composition(%)
C:0.10-0.22, Si≤0.60, Mn:1.10-1.70, P≤0.025, S≤0.015, Al≥0.020, N≤0.012, Cr≤0.012, Cr≤0.30, Cu≤0.30, Mo≤0.08, Nb≤0.020, Ni≤0.30, Ti≤0.03, V≤0.02, Cr+Cu+Mo+Ni≤0.70

Equivalent grades of grade P355GH (1.0473)

EN 10028-2 P355GH Pressure vessel steel plate Specification
Thickness: 0.3-500mm
Width: 100-3500mm
Length: 1-12m, coil rolled, or as required
Surface Treatment: black pained, PE coated, Galvanized, Colour painted
Technique: Hot rolled, cold rolled
Place of Origin:Zhengzhou, Henan, China(Mainland)

Delivery Condition
AR(As Hot Rolled), N(Normalized), T(Tempered), Q(Quenched), TMCP, Q+T(Quenched and Tempered), UT(Ultrasonic Test:ASTM A435, ASTM A578-C/B/A, EN10160-S0E1, S1E2, S2E3, S3E4), Impact Test, PWHT(Post Weld Heat Treatment), HIC, Z Test(Z15, Z25, Z35)

Bebon International has a huge supply of EN 10028-2 P355GH Pressure vessel steel plate capacity that can be meet the needs of a large number of customers, to provide customers with one-stop service for customers to quickly receive high-quality products. If you are interested in our EN 10028-2 P355GH steel plate, please contact us.
