SHIPPING 5000 TONS PRESSURE STEEL PLATE TO CANADA IN 2015

In 2015, the contractor named Capitan from Canada purchased 5000 tons pressure steel plate from us. These plates are for Sarawak project for Sarawak Shell Berhad - Sabah Shell Petroleum Comp. Ltd. company. Bellow is the technical data
1. 16Mo3 technical information
The chemical composition of 16Mo3 steel plate : (%)

C

Si

Mn

P

S

N

Cr

Cu

Mo

Ni

0.12-0.2

≤0.35

0.4-0.9

0.025max

0.010max

≤0.012

≤0.3

≤0.3

0.25-0.35

≤0.3


The Mechanical Properties of 16Mo3 steel plate, Thickness≤16mm:

Tensile Strength [MPa]

Yield Point

min, [MPa]

Elongation

A, min,%

440-590

275

22

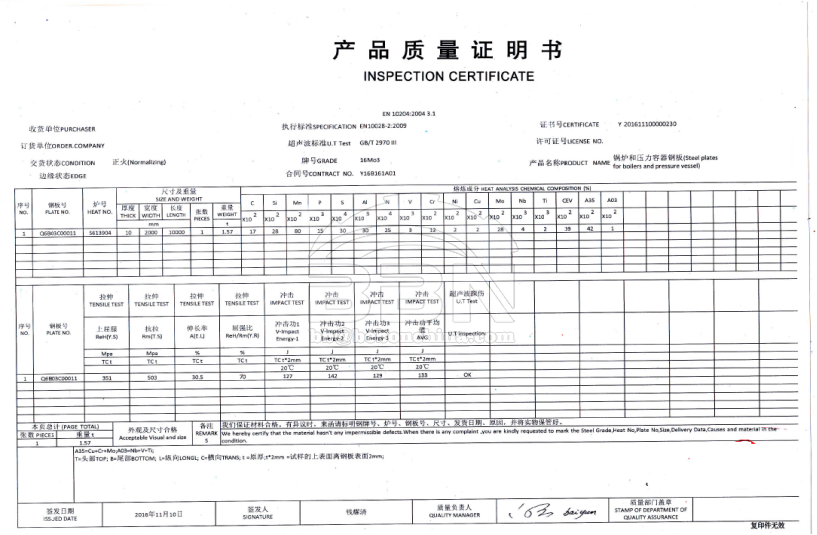

2.16Mo3 Original Mill Test Certificate
SHIPPING 5000 TONS PRESSURE STEEL PLATE TO CANADA IN 2015

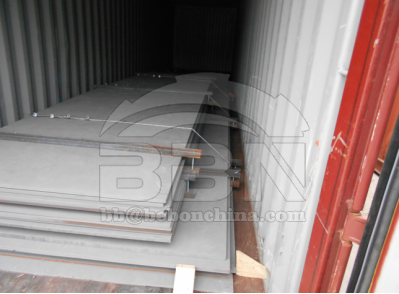

3.DELIVERY
SHIPPING 5000 TONS PRESSURE STEEL PLATE TO CANADA IN 2015

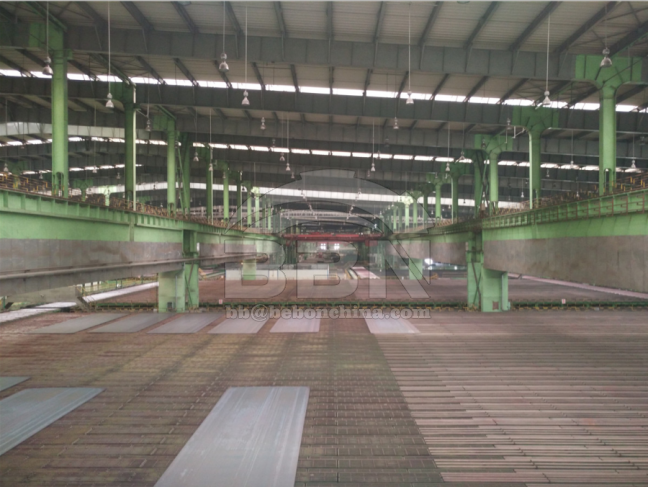

4.THE PLATE PRODUCING PROCESS IN OUR MILL


SHIPPING 5000 TONS PRESSURE STEEL PLATE TO CANADA IN 2015
