FE510C steel under standard UNI 7070 is widely used for bridges, ships, power station equipment, material handling equipment, machinery manufacturing and other engineering and withstand high loads welded structure.
FE510C steel
FE510C steel chemical composition:
FE510C Carbon C: ≤ 0.24
FE510C Manganese Mn: ≤ 1.60
FE510C Phosphorus P: ≤ 0.030
FE510C sulfur S: ≤ 0.030
FE510C Si Si: ≤ 0.55
FE510C Copper Cu: ≤ 0.55
FE510C nitrogen N ≤ 0.012
fe510c steel mechanical properties:
Tensile strength (σb / MPa):> 3 - ≤ 16MM (thickness) 470-630
> 16 - ≤ 40MM (thickness) 470-630
> 40 - ≤ 63MM (thickness) 470-630
> 63 - ≤ 80MM (thickness) 470-630
Yield point (σs / MPa):> 3 - ≤ 16MM (thickness) ≧ 355
> 16 - ≤ 40MM (thickness) ≧ 345
> 40 - ≤ 63MM (thickness) ≧ 335
> 63 - ≤ 80MM (thickness) ≧ 325
Impact energy Akv (J): 0 ° ≥ 62

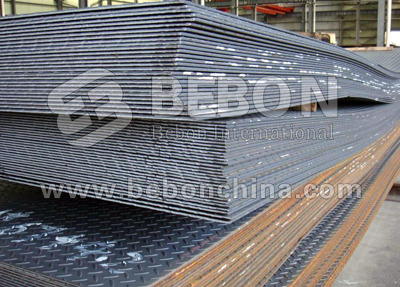

BEBON has registered a large amount of fe510c steel ex-stock source on our trade flatform. We have two big warehouses, respectively in Shanghai and Tianjin.
If need FE510C steel, please contact us.
