310 Stainless steel
Stainless steel 310 is an austenitic heat resistant alloy with excellent resistance to oxidation under mildly cyclic conditions through 2000ºF. Its high chromium and nickel contents provide comparable corrosion resistance, superior resistance to oxidation and the retention of a larger fraction of room temperature strength than the common austenitic alloys like Type 304. Stainless 310 is often used at cryogenic temperatures, with excellent toughness to -450°F, and low magnetic permeability.
Any question,please Click here to Contact Online Service , or Send us an email 310 Stainless steel Application
310 Stainless steel Characteristic
1.Oxidation resistance to 2100°F
2.Moderate strength at high temperature
3.Resistance to hot corrosion
4.Low magnetic permeability
5.Strength and toughness at cryogenic temperatures

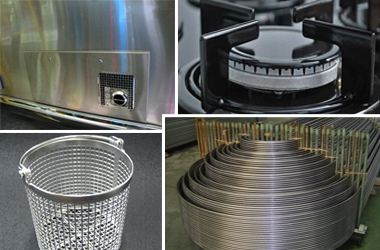

310 Stainless steel Application
1 . Furnaces
2 . Heat treatment baskets
3 . Jigs
4 . Case hardening boxes
5 . Steam locomotives parts
6 . Burners
7 . Combustion chambers
8 . Heat exchangers and food
     processing equipment
Any question,please Click here to Contact Online Service , or Send us an email 310 Stainless steel Composition
310 Stainless steel Chemical Composition
Cr Ni C Si Mn
24.0-26.0 19.2-22.0 0.25 Max 1.50 Max 2.00 Max
P S Mo Cu Fe
0.045 Max .03 Max 0.75 Max 0.50 Max Balance
310 Stainless steel Mechanical Properties
Temperature, °F Ultimate Tensile Strength, ksi .2% Yield Strength, ksi Elongation Percent
70 80 35 52
1000 67.8 20.8 47
1200 54.1 20.7 43
1400 35.1 19.3 46
1600 19.1 12.2 48
310 Stainless steel Typical Creep-Rupture Properties
Temperature, °F Minimum Creep 0.0001%/hr, ksi 100,000 Hour Rupture Strength, ksi
12000 14.9 14.4
1400 3.3 4.5
1600 1.1 1.5
1800 0.28 0.66

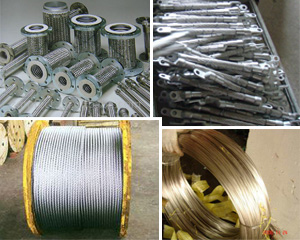

310 Stainless steel Plate
The thickness we produce is from 0.3mm to 120mm, the width we produce is from 1000mm to 2000mm. of course, we can process it and cut the size as customers request.
310 Stainless steel coil
The thickness we produce is from 0.3mm to 14mm, the width we produce is from 1000mm to 2000mm. ofcourse, We have slitting machine.we can cut coil for you according to customers width request.
310 Stainless steel Pipe & Tube
The wall thickness we produce is between 0.5 mm to 30 mm. The out diameter is between 6.0 mm to 480.0 mm.
310 Stainless steel wire
The size we can produce is 0.9mm to 12.0mm diameter. We can packing each coil with 50kg to 500kg. We can produce other stainless wire according to customer's request if you can offer the chemical composition
Any question,please Click here to Contact Online Service , or Send us an email Compare with 310s stainless steel
Chemcial Composition of Grade 310/310S
The chemical composition of grade 310 and grade 310s stainless steel are summarised in the following table.
Table 1. Chemical composition % of grade 310 and 310S stainless steel
Chemical Composition 310 310S
Carbon 0.25 max 0.08 max
Manganese 2.00 max 2.00 max
Silicon 1.50 max 1.50 max
Phosphorus 0.045 max 0.045 max
0.030 max 0.030 max
Chromium 24.00 - 26.00 24.00 - 26.00
Nickel 19.00 - 22.00 19.00 - 22.00
Mechanical Properties of Grade 310/310S
The mechanical properties of grade 310 and grade 310s stainless steel are summarised in the following table.
Table 2. Mechanical properties of of grade 310/310S stainless steel
Mechanical Properties 310/ 310S
Grade 0.2 % Proof Stress MPa (min) 205
Tensile Strength MPa (min) 520
Elongation % (min) 40
Hardness (HV) (max) 225
Physical Properties of Ferritic Stainless Steel
The physical properties of grade 310 and grade 310s stainless steel are summarised in the following table.
Table 3. Physical properties of grade 310/310S stainless steel
Properties at Value Unit
Density   8,000 Kg/m3
Electrical Conductivity 1.25 %IACS
Electrical Resistivity 0.78 Micro ohm.m
Modulus of Elasticity 200 GPa
Shear Modulus 77 GPa
Poisson's Ratio 0.3
Melting Range   1400-1450 °C
Specific Heat   500 J/kg.°C
Relative Magnetic Permeability   1.02
Thermal Conductivity 14.2 W/m.°C
Coefficient of Expansion 0 15.9 /°C
  0 16.2 /°C
  0 17 /°C
Any question,please Click here to Contact Online Service , or Send us an email 310 stainless steel workshop
Any question,please Click here to Contact Online Service , or Send us an email 310 stainless steel Package

Bebon's stainless products are not only steel plate and sheet, but also many profile steel, like round bar, stainless steel wire, pipes and so on.

In May of 2012, we exported about 100 tons stainless steel wire to Malaysia. Our custoer is KENCANA HL SDN BHD. We have offered top quality and service to them, and we received repeat order from them when they do new project this year.

310 Stainless steel package
