316 Stainless steel
Type 316 is an austenitic chromium-nickel stainless and heat-resisting steel with superior corrosion resistance as compared to other chromium-nickel steels when exposed to many types of chemical corrodents such as sea water, brine solutions, and the like.
Stainless steel 316 contains an addition of molybdenum that gives it improved corrosion resistance. This is particularly apparent for pitting and crevice corrosion in chloride environments.
For more information about 316 stainless steel,please contact our Online Service or sent mail to us !
316 Stainless steel Composition
Click here to contact Online Service, or Send us an email
316 Stainless steel chemical composition
C> Si Mn P S Ni Cr N
≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 10.00-14.00 16.00-18.00 2.00-3.00
316 Stainless steel Mechanical Properties

              Mechanical Property

Hardness Value
Sample state Rm
MPa
Rp0.2
MPa
A
%
Z
%
HBW HRB HV
solid solution ≥520 ≥205 ≥40 ≥60 ≤187 ≤90 ≤200
316 Stainless steel equal standard
GB/T1220 ISO/TS15510 JIS G4403 ASTM A959
06Cr17Ni12Mo2 X5CrNiMo17-12-2 SUS316 316(S31600)
316 Stainless steel Classification
Click here to contact Online Service, or Send us an email
  • 316 Stainless steel plate
    316 stainless steel plate the common size are: thickness; 6-600mm, width: 1500-3800.
  • 316 Stainless steel sheet
    316 stainless steel sheet thickness for 0.2-3.0mm, width for 10-1500, and the length for10-2438mm. The surface state are: 2B, BA ,NO.3, No4, HL, No1.
  • 316 stainless steel Angle
    316 stainless steel Angle the common size for Thickness 3mm-10mm, width: 25-100mm, length max6000mm. The surface state is No.1.
  • 316 Stainless steel coil
    The common size of 316 Stainless steel coil are: thickness for 0.3mm-12mm, max width for 20000mm, and the surface state are: No1, 2B, BA ,NO3,No4, HL.
  • 316 stainless steel pipe
    316 Stainless steel pipe the common thickness for 2-80mm, Diameter for 19-508mm, length for 5-12m, and the surface treatment are or as required.
  • 316 Stainless steel Flat bar
    316 Flat bar common size: Thickness:3-20mm, Width:25-150mm, Length: max 6000mm . And the surface state are usually: No.1
  • 316 Stainless steel Application
    Click here to contact Online Service, or Send us an email
    Compare with 304 stainless steel
    The steel was initially produced for the paper producing industry as it has been shown to be highly resistant to the sulphur compounds used in paper processing. Typical applications for this material are now widespread due to its superior corrosion resistance properties when compared to Grade 304. Type 316 stainless steel can be found in heat exchangers, pharmaceutical equipment, dairies and breweries, marine fittings, coastal architectural fascia and fittings and in food preparation areas.

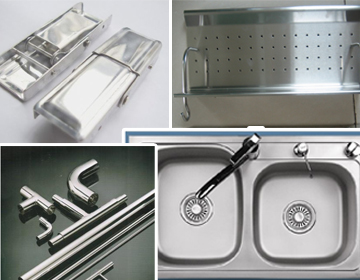

    316 Stainless steel Application
    1. Medical equipment
    2. Food industry
    3. Construction material
    4. Kitchen utensils
    5. Electric equipment
    6. building construction
    7. Chemical tank, pipe
    8. heat exchange equipment
    9. dyeing installation equipment
    10. Film processing equipment
    316 Stainless steel surface finish
    Click here to contact Online Service, or Send us an email

    2B : Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.

    BA : Those processed with bright heat treatment after cold rolling.

    NO.3 : Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.

    NO.4 : Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.

    HL : Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.

    NO.1 : The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.


    • 2B

    • BA

    • NO.4

    • NO.1

    • NO.3

    • HL
    316 Stainless steel equipment and Machining
    Click here to contact Online Service, or Send us an email
    316 Stainless steel case
    Click here to contact Online Service, or Send us an email
    316 Stainless steel Packing
    1 . Packaging material: kraft paper, waterproof paper, seaworthy packing, wooden or steel support and so on.
    2 . Package purpose: to protect the product during the transportation, shipment or flight.
    316 Stainless steel case
    In 2010, one of our customers coming from Malaysia who is specialize in project for the Oil and Gas industry eed 316 stainless steel for 200ton and S235JR for 150 ton.. They are looking for partner in China to cooperate, especially stockist. They researched the market,get some competitive price. However, they worry much about the quality of the steel. So we suggest them to ask their technicist to visit our company and our cooperative mill. After checking, they sign the contract with us. Now they purchase the product from our company for almost every 3 month.
    Contact us
    Click here to contact Online Service, or Send us an email
    BEBON is specialized stainless steel tube,stainless steel bar,stainless steel sheet,stainless steel plates,stainless steel Strip. Based on the domestic rich product resources and professional research on international market, BEBON'service has already spread many countries in Europe , America, Southeast Asia, Middle East, South America, Africa, and so on .
