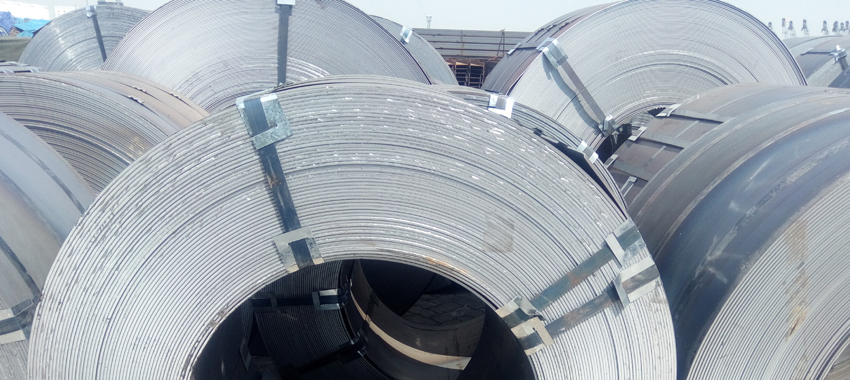

GL F500 Shipbuilding Steel Coil

GL F500 Shipbuilding Steel Coil Chemical Composition and Mechanical Property

C max Si max Mn P max S max N max.

0.18

0.55 1.60

0.020

0.020

0.020

Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
500 610-770 16

GL F500 Shipbuilding Steel Coil Application

GL F500 shipbuilding steel coil is used in Shipbuilding Project and Offshore Structural Project.

GL F500 Shipbuilding Steel Coil Other Name

GL F500 shipbuilding steel, GL F500 shipbuilding steel coil

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
