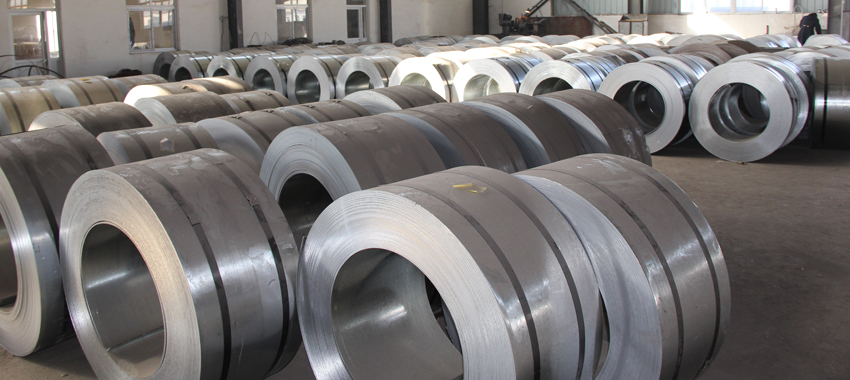

ASME SA514/SA514M Grade A Carbon and Low-alloy High-strength Steel Coil
ASME SA514/SA514M Grade A Carbon and Low-alloy High-strength Steel Coil Chemical Composition and Mechanical Property
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Cr | Mo | |
| SA514Gr.A | 0.15-0.21 | 0.40-0.80 | 0.80-1.10 | 0.035 | 0.035 | 0.50-0.80 | 0.18-0.28 |
| Zr | B | ||||||
| 0.05-0.15 | 0.0025 | ||||||
|
Grade |
SA514 Grade A mechanical properties |
|||
|
Thickness |
Yield |
Tensile |
Elongation |
|
|
SA514 grade A |
mm |
Min Mpa |
Mpa |
Min % |
|
20 |
690 |
760-895 |
18 |
|
|
20-65 |
690 |
760-895 |
18 |
|
|
65-150 |
620 |
690-895 |
18 |
|
ASME SA514/SA514M Grade A Carbon and Low-alloy High-strength Steel Coil Application
SA514 Grade A carbon steel coil is used in the Construction of Bridges, Highway Construction and Other Engineering construction.
ASME SA514/SA514M Grade A Carbon and Low-alloy High-strength Steel Coil Other Name
ASME SA514/SA514M low-alloy high-strength steel, SA514 Grade A carbon steel coil, SA514 Grade A low-alloy high-strength steel coil
Additional Condition
UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
