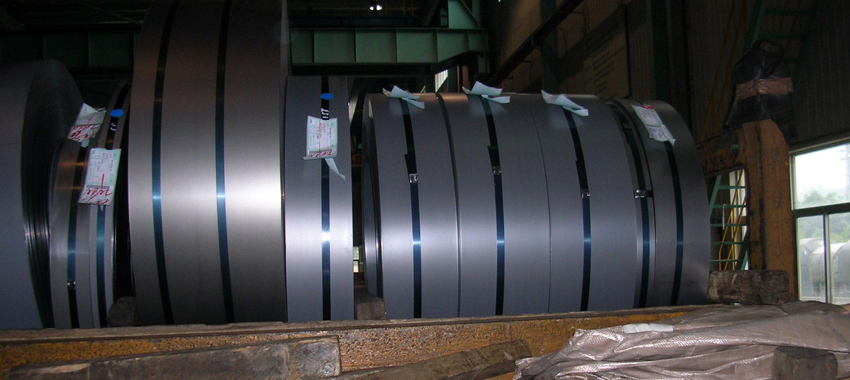

GB/T4171 Q415NH Weather Resistant Steel Coil

GB/T4171 Q415NH Weather Resistant Steel Coil Chemical Composition and Mechanical Property

Grade

Chemical Composition(%)

C Max

Si Max

Mn Max

P Max

S Max

GB/T 4171 Q415NH

0.12

0.65

1.1

0.025

0.030

Yield Strength (MPa) min. (t≤16mm) Yield Strength (MPa) min.(16mm<t≤25.4mm) Tensile Strength (MPa) Elongation % min.(t≤16mm) Elongation % min.(16mm<t≤25.4mm)
415 405 520-680 22 22

GB/T4171 Q415NH Weather Resistant Steel Coil Application

GB/T4171 Q415NH weather resistant steel coil is used for Vehicle, Bridge, Tower and Containers.

GB/T4171 Q415NH Weather Resistant Steel Coil Other Name

Q415NH weather resistant steel coil, GB/T4171 Q415NH weather resistant steel coil

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
