ASTM A131 AH36 steel properties, AH36 material properties

ASTM A131 AH36 steel properties is much emphasized by ship designers. As the raw material ASTM A131 AH36 steel determines the final ship quality to large extent. BBN steel produce ASTM A131 AH36 steel in strict accordance with ASTM A131/A131M standard and comply with rules of classification societies.

ASTM A131 AH36 steel Chemical Composition:

Grade	C %	Si %	Mn %	P %	S %	V %	AL %	Cr %
ASTM A131 AH36	0.180	0.1-0.5	0.90-1.6	0.035	0.035	0.05-0.10	0.015	0.200
	Cu %	Mo %	Nb %	Ni %	Ti %
	0.350	0.080	0.02-0.05	0.400	0.020

ASTM A131 AH36 steel Mechanical Properties:

Grade	Thickness(mm)	MinYield(Mpa)	Tensile(Mpa)	Elongation (%)	Min Impact Energy
ASTM A131 AH36	8mm-50mm	Min 355Mpa	490-620Mpa	21%	0	34J
	51mm-70mm	Min 355Mpa	490-620Mpa	21%	0	41J
	71mm-100mm	Min 355Mpa	490-620Mpa	21%	0	50J
The min impact energy is longitudinal energy

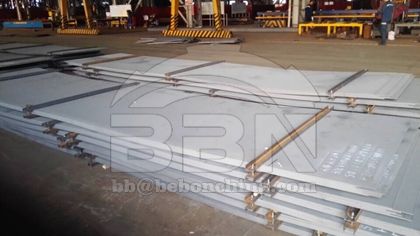

ASTM A131 AH36 steel plate specification:
AH36 steel plate Thickness: 6mm to 240mm,
AH36 steel plate Width: 1500mm to 4020mm
AH36 steel plate Length: 3000mm to 27000mm.
The max weight of ASTM A131 AH36 steel plate is 36MT/PCS.
ASTM A131 AH36 steel plate Z test: Z15, Z25, Z35
ASTM A131 AH36 steel plate UT test: S0E1, S1E2, S2E3 and so on.
