EN 10025-4 S355ML steel plate is a hot-rolled weldable fine-grained structural steel. S is the meaning of structural steel, 355 indicates that the small yield value of the relevant thickness less than 16mm is 355MPa, and M represents his delivery, that is, the meaning of hot rolling. The rule is when the temperature is not less than -50 degrees. The impact is indicated by a capital letter L.
EN 10025-4: 2004 standard specifies requirements for flat and long products of hot rolled weldable fine grain structural steels in the thermomechanical rolled condition. The grade S355ML steel specification: in thickness ≤120 mm for flat products and in thickness ≤150 mm for long products.
EN 10025-4 S355ML steel the ladle analysis (%)
Grade |
C |
Si |
Mn |
P |
S |
Nb |
V |
|
S355ML |
≤0.14 |
≤0.5 |
≤1.6 |
≤0.025 |
≤0.020 |
≤0.05 |
≤0.1 |
|
Al |
Ti |
Cr |
Ni |
Mo |
Cu |
N |
|
|
≤0.02 |
≤0.05 |
≤0.3 |
≤0.5 |
≤0.1 |
≤0.55 |
≤0.015 |
EN 10025-4 S355ML steel maximum CEV based on the ladle analysis
Grade |
Maximum CEV in% for nominal product thickness in mm |
||||
|
≤16 |
16-40 |
40-63 |
63-120 |
120-150 |
|
|
S355ML |
0.39 |
0.39 |
0.4 |
0.45 |
0.45 |
S355ML steel plate application range

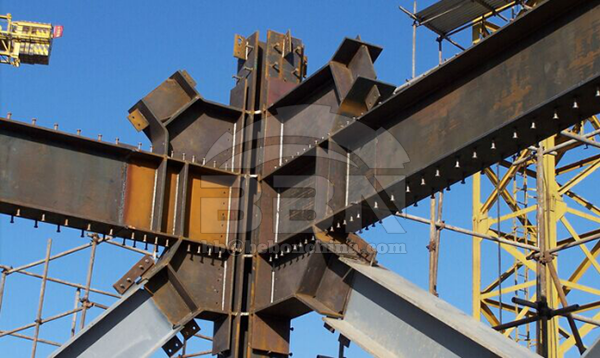

In addition to EN10025-1 steel, S355ML grade steel is also used in the load-bearing parts of low-temperature welded structures such as bridges, sluices, storage tanks, water supply tanks, etc., in addition to the steel plan specified in this standard.
