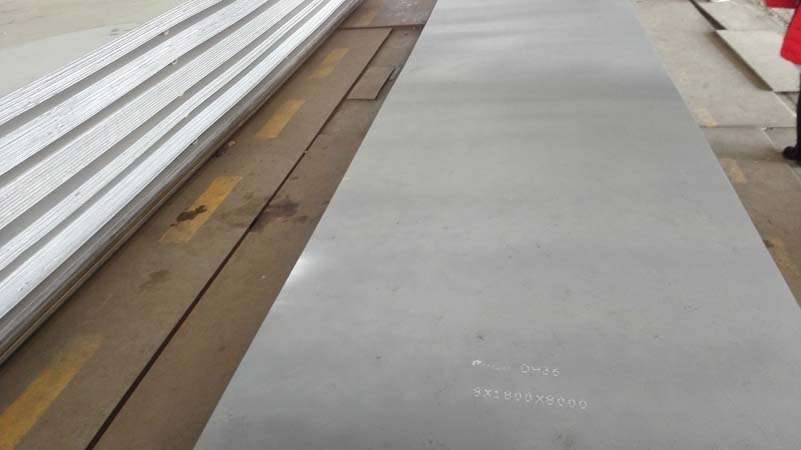

GL Grade A Shipbuilding Steel Plate

GL Grade A Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max	Si max.	Mn min.	P max	S max	Cu max	Cr max	Ni max
0.21	0.50	0.50	0.035	0.035	0.35	0.30	0.30

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
235	400-520	22

GL Grade A Shipbuilding Steel Plate Application

GL Grade A Shipbuilding steel plate is mainly used to Shipbuilding Project and Ocean Offshore Structural Project.

GL Grade A Shipbuilding Steel Plate Other Name

GL Grade A Shipbuilding steel plate,GL Grade A Ship Steel plate ,GL Grade A Marine Steel plate , GL Grade A Steel Plate .

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
