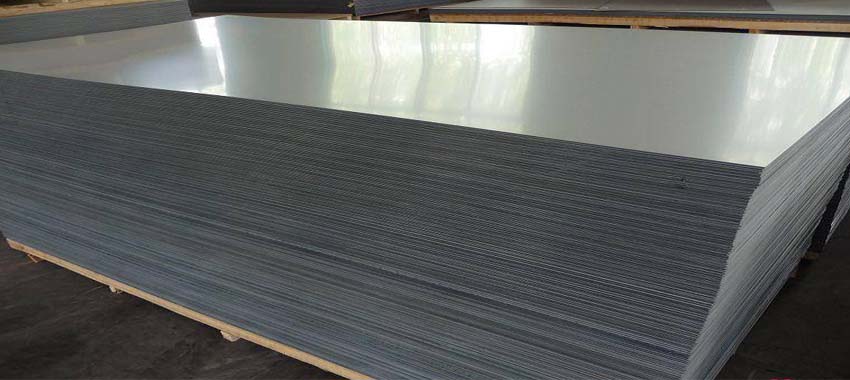

DNV Grade E Shipbuilding Steel Plate

DNV Grade E Shipbuilding Steel Plate

DNV Grade E Shipbuilding Steel Plate Chemical Composition and Mechanical Property

C max Si max. Mn min. P max S max Cu max Cr max Ni max Als min

0.18

0.35

0.70

0.025

0.025

0.35 0.30

0.30

0.015

Yield Strength (MPa) min. Tensile Strength (MPa) Elongation min. %
235 400-520 22

DNV Grade E Shipbuilding Steel Plate Application

DNV Grade E Shipbuilding steel plate is mainly used to Shipbuilding Project and Ocean Offshore Structural Project.

DNV Grade E Shipbuilding Steel Plate Other Name

DNV Grade E Shipbuilding steel plate,DNV Grade E Ship Steel plate ,DNV Grade E Marine Steel plate , DNV Grade E Steel Plate .

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
